DYNAMIX HP-52/S HomeCNA3.1 Coax modem (224Mbps)

DYNAMIX HP-52/S

HomeCNA3.1 Coax modem (192Mbps)

Specification | | Back panel | Application | Ordering information

This equipment including guaranteed quality of service (QoS), low cost, robust performance, and the ability to operate over coax cables.
   DYNAMIX HP-52/S enables You to set-up your Private Network at Home with your Existing Coaxial Cable. No additional Network wiring is necessary. You may just Find a Coax Connector in the wall, put the coaxial plug into the connector, you can then be ready to access the broadband Internet (at connection to HomeCNA3.1 Coax MDU Master Bridge - DYNAMIX HP- 52/M). No extra utility is needed. No setting, just link. Simply Plug & Play.
   Via the RJ-45 Ethernet Ports, You can connect DYNAMIX HP- 52/S with the Ethernet - Interfaced Devices such as STB, Camera Server, PC or Switch/Hub.
   The High speed of 192Mbps will bring you to enjoy the “video-on-demand” or “multimedia-on-demand” services.
   To connect an analog telephone and the implementation of VoIP calls and receive calls over the Internet or VPN network in a series of DYNAMIX HP-52 / S is a special model that supports FXS interface - DYNAMIX HP-52 / S FXS.

User's manual

User's guide
      100 Kb

•

HCNA Coax Port as Home Network Backbone by Using Existing Coaxial Cable

•

HCNA up to 192Mbps PHY Rate as Distribution Backbone over Coax

•

Two 10/100M Fast Ethernet Ports

•

Up to 65dB Attenuation on Coax Network

•

Filter Built-in to Eliminate Noise from TV

•

QoS Priority and Mapping Support

•

Queuing Schemes for Variant QoS Demand

•

TagVLAN Configuration

•

Service and Bandwidth Control

•

IGMP Snooping Control

•

Intelligence for Carrier IPTV Service

•

The model supports FXS interface - DYNAMIX HP-52 / S FXS

Networks standards
	HomePNA 3.1 over Coaxial Cable (HCNA)
	IEEE 802.3 10M Ethernet
	IEEE 802.3u 100M Fast Ethernet
	IEEE 802.3x Flow Control

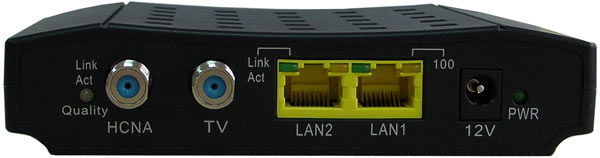

Connectors
	Ethernet : Two RJ-45 Ports
	HCNA : Two F-Type Female Coax Connectors, One for HCNA, the Other One for TV
	Telephone: One RJ11 Female (DYNAMIX HP-52/S FXS)

Voice over IP (FXS model)
	SIP Protocol, G.711 and Low Bit Rate Codec
	Supplementary Service: Call Waiting, Call Hold, Call Transfer, Call Forward, 3-Way Conference
	Auto Provisioning Support

Transmission Power/Spectrum
	15 +/- 1 dBm
	12 - 44MHz

Transmission Range and Distance
	Data Rate Up to 192Mbps
	Up to 65dB Attenuation

Fast Ethernet Interface
	10/100Mbps Auto Negotiation
	MDI/MDI-X Auto Crossover

Management (via DYNAMIX HP-52/M)
	DHCP Support: Option 82 and Snooping
	Auto Configuration Support
	Priority Based on 802.1p, TOS, TCP/UDP Port
	802.1Q TagVLAN Support
	Diagnosis of HCNA Interface, and Noise Spectrum Analyzer Built-in
	Firmware Upgrade
	Bandwidth Control
	IGMP v2 Snooping Control
	Endpoint Ethernet Statistics and Status

Indicators
	"Power" LED
	HCNA "Link/Activity" LED
	Ethernet “Link/Activity” LED x 2
	Phone: “Register” LED and Call Status LED ( DYNAMIX HP-52/S FXS)

Power Requirement
	External Power Supply : 12VDC
	Power Consumption < 8Watt

EMI/EMC
	Comply with VCCI and FCC Part 15
	Comply with CE

Environmental Conditions
	Operating Temperature : 0 C ~ 50 C (32 F ~ 104 F)
	Storage Temperature : -10 C ~ 65 C (14 F ~ 149 F)
	Operating Humidity : 10% ~ 95%, Non-Condensing
	Physical Dimension: 130mm (W) x 95mm (D) x 32mm (H)
	Weight: about 200 g

DYNAMIX HP- 52/S	HomeCNA3.1 Coax modem (192Mbps)
DYNAMIX HP- 52/S FXS	HomeCNA3.1 Coax modem (192Mbps) with FXS port
