DYNAMIX HP-31/S
|
|
HCNA
(HomePNA 3.1 over Coax) to Ethernet Bridge |
|
|
|
|
DYNAMIX HP-31/S enables You to set-up your Private Network at Home with your Existing Coaxial Cable. No additional Network wiring is necessary. You may just Find a Coax Connector in the wall, put the coaxial plug into the connector, you can then be ready to access the broadband Internet.
No extra utility is needed. No setting, just link. Simply Plug &
Play.
|
User's
guide
0.6 Mb
Quick start
|
DYNAMIX HP-31/S including guaranteed quality of service
(QoS), low cost, robust performance, and the ability to operate simultaneously over coax
cables.
Via the RJ-45 Ethernet Ports, You can connect DYNAMIX
HP-31/S with the Ethernet - Interfaced Devices such as STB, Camera Server, PC, or Switch/Hub. The High speed of 128Mbps will bring you to enjoy the “video-on-demand” or
“multimedia-on-demand” services.
With DYNAMIX HP-31/S you can even quickly extend or flexibly change the existing LAN environment.
|
|
|
|
| • |
Using existing coaxial cable to build a home network |
| • |
Shares high speed Internet access and streaming video |
| • |
1 port 128 Mbps connection compliant with HomePNA
3.1 over Coax (HCNA) standard |
| • |
1 port for TV |
| • |
2 Standard 10/100 Base TX Fast Ethernet ports for connecting to Ethernet or cable modem |
| • |
“Plug & Play” |
| • |
10/100 Mbps Auto-Negotiation Support |
| • |
QoS Priority Mapping Support and IP TOS |
| • |
Distance up to 1200 m over RG 59 wires |
| • |
Filter Built-in to Eliminate Noise from TV |
| • |
Compact Size Design |
 Back to Top
|
|
|
|
|
| Networks standards |
| | HomePNA 3.1 over Coaxial Cable (HCNA) |
| | IEEE802.3 |
| | IEEE802.3u |
| | IEEE802.3x |
| Connectors |
| | Ethernet : Two RJ-45 Ports |

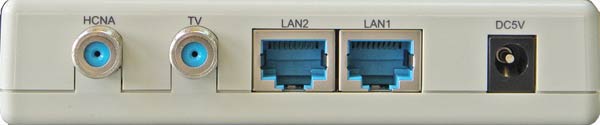

| | HCNA : Two F-Type Female Coax Connectors, One for HCNA, the Other One for TV |
| Transmission Power/Spectrum |
| | 0 +/- 1 dBm /
4~20 MHz |
| Transmission Speed/Distance |
| | Up to 128 Mbps |
| | Up to 1200 m |
| Quality of Service |
| | Priority Queue Based on 802.1p |
| | TAG VLAN Pass Through |
| | Quaranteed QoS based on HomePNA
3.1 Parameterized QoS |
| Fast Ethernet Interface |
| | 10/100Mbps |
| | MDI/MDI-X Auto Crossover |
| Indicators |
| | "Power" LED |
| | Ethernet "Link/Activity" LED x 2 |
| | HCNA "Link/Activity" LED |
| Power Requirement |
| | External Power Supply : 5VDC |
| | Power Consumption <
4 Watt |
| EMI/EMC |
| | Comply with FCC Part15 |
| | Comply with CE |
| | Comply with UL/cUL and CSA |
| Environmental Conditions |
| | Operating Temperature : 0 C ~ 40 C (32 F ~ 104 F) |
| | Storage Temperature : -10 C ~ 65 C (14 F ~ 149 F) |
| | Operating Humidity : 10% ~ 95%, Non-Condensing |
| | Physical Dimension:
114mm (W) x 67mm (D) x 25mm (H) |
| | Weight: about
120 g |
|
|
Back to Top
|
|
|
|
|
|
|
|
|
|
