Solution on the base of ADSL equipment of Dynamix series

Connection of the remote offices to Internet

For necessity providing of connecting to Internet of the different offices or branches, located in the distance an about 5-7 km from provider, it is possible to use of SHDSL and ADSL technologies.
ADSL technology can be created then, when the datastream from offices or branches is asymmetric ( upload speeds is more than download speeds ). The typical example of such offices can be, for example, shops, administrative district , etc.
The environment of data transmission is the dedicated copper line (own or leased).

In this case in the offices can be created:

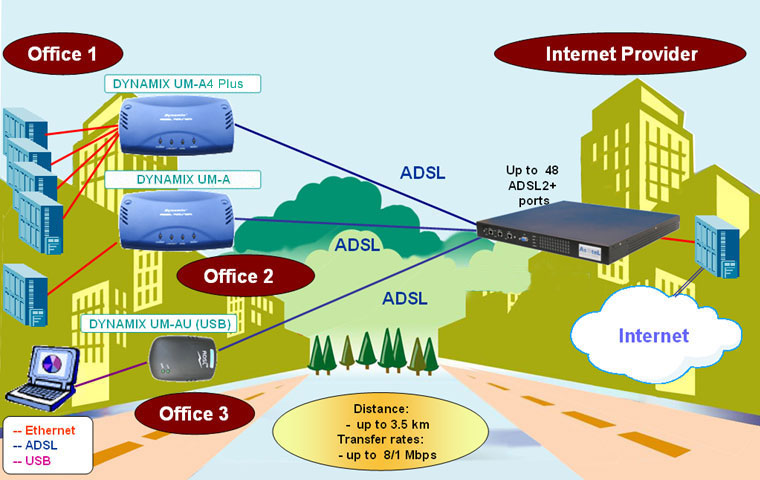

1. DYNAMIX UM-A4 Plus (4 LAN) ADSL2/2+ modem/router (See on a picture Office 1). This device provides support up to 4 Ethernet ports and Firewall. Full Rate ADSL Router provides the full rate maximum 8Mbps download speed and with maximum 1 Mbps uploads. Dynamix UM-A4 Plus (4 LAN) has 4 Ethernet ports, that sufficiently for providing of Internet services of small office.

2. For individual access in Internet can be used DYNAMIX UM-A – universal ADSL modem/router (See on a picture Office 2) with USB and Ethernet ports and Firewall support, with full rate 8 Mbps download speed and 1 Mbps uploads.
By using of additional network switchboard the number of subscribers of office can be easily doubled.

3. For individual access in Internet can be used DYNAMIX UM-AU – universal ADSL modem with USB port (See on a picture Office 3) It is economical and advantageous decision for connecting of notebooks and computers with USB interface.

4. At a necessity connecting to the provider on speeds more than 8 Mbps downstream and 1 Mbps upstream can be used ADSL2/2+ modems/routers, for example, DYNAMIX UM-A Plus - universal ADSL2/2+ modem/router with Ethernet and USB ports and Firewall support - with speeds of transmission to 24 Mbps downstream and 1 Mbps upstream.

The choice of modem type is based both on necessary for this office high speed of transmission and on Internet possibilities.
Provider (by type of the equipment used by provider - ADSL2/2+ or ADSL).

In the side of Internet provider can be created:

1. 16-48 ports ADSL concentrator (DSLAM)
16-48 ports ADSL DSLAM with built-in POTS splitters provid broadband data service over existing copper wires without affecting the conventional voice service.
