DYNAMIX UM-AU - ADSL modem (8 Mbps / 800 Kbps) with USB port

DYNAMIX UM-AU

Universal ADSL modem (8 Mbps / 800 Kbps) with USB port

Specification | Back panel | Ordering information

Dynamix UM-AU is a USB ADSL Modem, which provides an "Always-On" high speed broadband connection to the Internet. Dynamix UM-AU is fully compliant with ANSI T1.413 Issue 2, ITU G.992.1, ITU G.992.2 standards and with data transfer rates up to 8 Mbps in downstream and 1 Mbps in upstream.

Dynamix UM-AU is the ideal solution for high bandwidth applications such as access to a corporate network, Internet access and video delivery.

User's manual

Quick start
892 Kb

•

Support ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) and ITU-T G.992.2 (G.lite) Annex A/B/B (U-R2) ADSL Standard.

•

Downstream and Upstream data rates up to 8Mbps and 1Mbps respectively

•

ATM SAR performed in software driver.

•

Fully support PPP over ATM (RFC2364) protocol standards.

•

Fully support PPP over Ethernet (RFC2516) protocol standards

•

Fully support Ethernet Bridging/Routing over ATM (RFC1483) protocol standards

•

Fully support Classical IP over ATM (RFC1577) protocol standards.

•

Compliant with USB Specification 1.1.

•

Support USB full speed (12Mbps)

•

Support Plug-and-Play Installation.

•

Bus-powered USB device.

•

Control panel applet provided for real time diagnostic information.

•

LED indicator indicates connection status

USB INTERFACE
	Compliant with USB Specification 1.1.
	Support USB full speed (12 Mbps).
	Suspend/Resume.
	Bus-powered device set

ADSL Standards
	Compliant with ADSL standards : - Full Rate ANSI T1.413 i2 and ITU G.DMT (G.992.1). - Splitterless ITU G.LITE (G.992.2).
	DMT modulation and demodulation
	Rate adaptive: - Maximum downstream rate of 8Mbps. - Maximum upstream rate of 1Mbps.
	Support splitterless full rate operation
	Time detection for low power mode
	Support Dying Gasp functionality.
	RJ-11 connector

LED indicators
	Power(green)- indicates USB connection status
	DSL -Link/Act (green) - indicates ADSL connection status

Environment
	Temperature : 0°C ~ 45°C
	Humidity : 5% ~ 95%

Physical Dimensions
	W x D x H : 120 mm x 115 mm x 33 mm

Certificates
	FCC Part 15 Class B, CE Mark
	EN60950, K.21
	U-R2

ATM PROTOCOL
	WAN Mode: - Support PPP over ATM (RFC2364). - Support PPP over Ethernet (RFC2516).
	LAN Mode: - Support Bridged/Router Ethernet over ATM (RFC1483). - Support Classical IP over ATM (RFC1577).
	Support ATM SAR, ATM Forum UNI 3.1/4.0 PVC, ATM AAL5 and OAM F4/F5

OS SUPPORT
	Windows 98SE
	Windows ME
	Windows XP
	Windows 2000
	MAC OS9/OSX (For 8M Memory model ONLY)
	Linux Redhat 7.1/7.2 (For 8M Memory model ONLY)

SYSTEM REQUIREMENT
	Windows 98SE/ME/XP/2000 Operating System.
	Pentium II compatible processor and above
	64MB RAM or more.
	50MB of free disk space for driver installation.
	CD-ROM drive

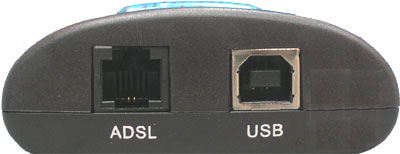

Back panel DYNAMIX UM-AU - ADSL modem (8 Mbps / 800 Kbps) with USB port

DYNAMIX UM-AU

Universal ADSL modem (8 Mbps / 800 Kbps) with USB port
