DYNAMIX HP-30/S(FE) HomePNA 3.1 (192 Mbps) - Ethernet adapter (2 ports 10/100 Base-TX)

DYNAMIX HP-30/S(FE)

HomePNA 3.1 (192 Mbps) - Ethernet adapter (2 ports 10/100 Base-TX)

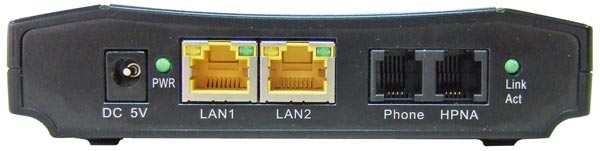

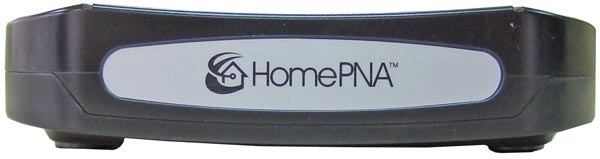

Specification | Front panel | Back panel | Ordering information

   The HomePNA3.1 Ethernet Adapter, DYNAMIX HP-30/S(FE), Enables You to Set-up Your Private Network at Home with Your Existing Telephone Lines. No Additional Network Wiring is Necessary. You may Just Find a RJ-11 Phone Jack in the Wall, Put the Phoneline and Plug into the Jack.
   No Extra Utility is Needed. No Setting, Just Link. Simply Plug & Play.
   Via the RJ-45 Ethernet Ports, You can Connect DYNAMIX HP-30/S(FE) with the Ethernet -Interfaced Devices such as STB, Camera Server, or Switch/Hub. The High Speed of 192 Mbps will Bring You to Enjoy the Video-On-Demand (VOD) or Multimedia-On-Demand (MOD) Services.

With DYNAMIX HP-30/S(FE), SOHO HomePNA3.1 Ethernet Adapter can Even Quickly Extend or Flexibly Change the Existing LAN Environment. Reducing Most Rewiring.

User's guide

Quick start

•

192 Mbps HomePNA Port as Home Network Backbone by Using Existing Phone Lines

•

Two 10/100M Fast Ethernet Ports for FTTH, DSL/Cable Modem, and Ethernet Terminals Such As PC, STB., etc.

•

Distance up to 240 m on HomePNA Port

•

Filter Build-in to Eliminate Noise from Phone Sets or PSTN Line

•

QoS Priority and Mapping Support

•

Plug & Play

•

Compact Size Design

Network Standards
	HomePNA V3.1
	IEEE802.3 - 10M Ethernet
	IEEE802.3u - 100M Fast Ethernet
	IEEE802.3x

Connectors
	Ethernet : Two RJ-45 Ports
	HomePNA : Two RJ-11 Ports, One for HomePNA, the Other One for Phoneline By-Pass

Transmission Speed
	• 192Mbps (36 - 68MHz)

Transmission Distance
	Up to 240m

Quality of Service
	TAG VLAN Pass Through
	Priority Mapping based on IEEE802.1p/IP TOS/Diffserv

Fast Ethernet Interface
	10/100Mbps
	MDI/MDI-X Auto Crossover

Indicators
	"Power" LED
	Ethernet "Link/Activity" LED x 2
	HomePNA "Link/Activity" LED,
	"SyncMode" LED

Power Requirement
	External Power Supply : 5 VDC
	Consumption : < 3 Watts

EMI/EMC
	FCC Part 15 and VCCI
	CE

Environmental Conditions
	Operating Temperature : 0°C~ 50°C
	Storage Temperature :-10°C~ 65°C
	Operating Humidity : 10% ~ 95%, Non-condensing

Physical Dimension
	130mm (W) x 95mm (D) x 32mm (H)

Unit Weight
	160g

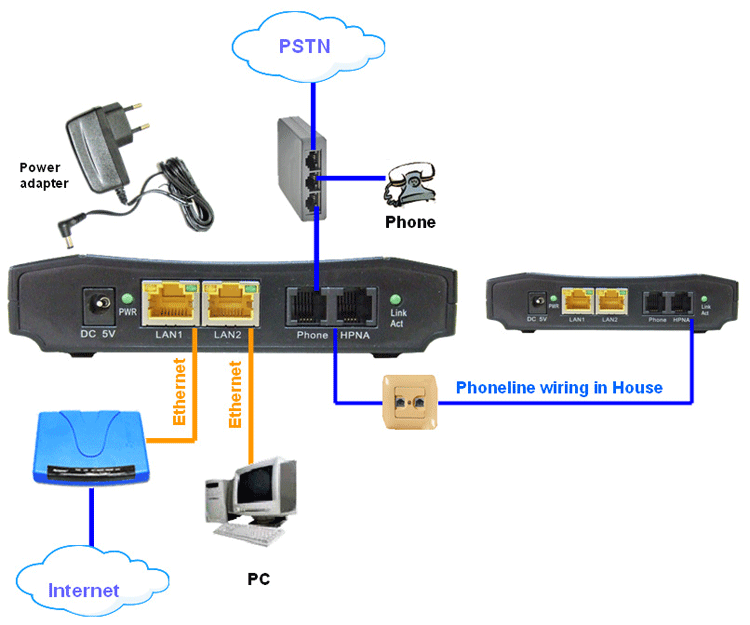

Connection

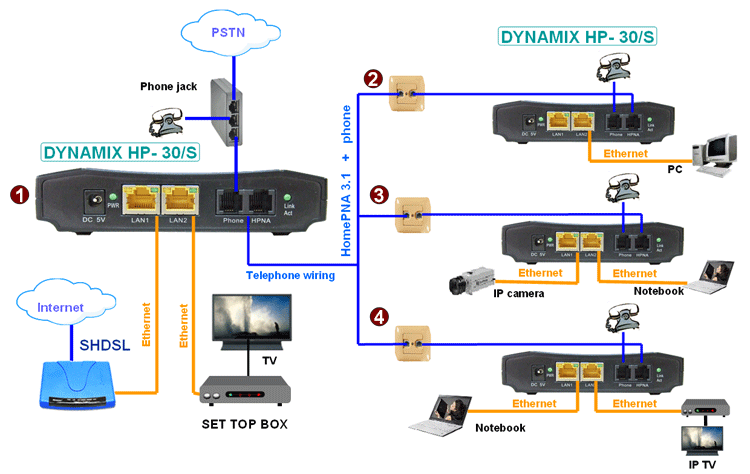

Application

DYNAMIX HP-30/S(FE)

HomePNA 3.1 (192 Mbps) - Ethernet adapter (2 ports 10/100 Base-TX)
