Dynamix -20km 10/100WDM(A/B)
|
| WDM Fiber Optic Media Converter 10/100 М , single mode, 20 km |
|
|
|
|
|
|
| • |
Optical port working mode is 100M Full Duplex, LAN port is Auto Negotiation |
| • |
Support electricity port's 10M 100M mode or self-adapt mode's switch |
| • |
Supply Auto-MDI/MDIX automatic reverse |
| • |
Electricity port support auto-negotiation
function, auto-regulation transmit mode and transmit speed |
| • |
Connect type: SC |
| • |
Fiber type: singlemode |
| • |
Wavelength: 1310/1550nm |
| • |
Typical distance: 20KM |
| • |
Min TX PWR: -18.0dBm |
| • |
Max TX PWR:-8.0dbm |
| • |
Sensitivity:<-30dbm |
| • |
Link budget:12.0dbm |
| • |
Support storage transmit mode |
| • |
Prot supply Auto-MDI/MDIX automatic reverse |
| • |
Afford of state indicator, external
power(output 5V-50HZ 1A) |
 Back to Top
|
|
|
|
|
| Standards |
| | accord with IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.1q 100Base-T,100Base-TX,
100Base-FX standard |
| Protocol |
| | support TCP/IP PPPOE DHCP ICMP NAT protocol |
| Interface |
| | electric port RJ-45
fiber port: SC |
| Flow control mode |
| | full duplex adopt IEEE802.3X, |
| | half duplex adopt Backpressure's standard |
| Electricity port |
| | support auto-negotiation function, auto-regulation transmit mode and transmit speed |
| Singlemode fiber |
| | 8/125,8.3/125,9/125µm |
| LED indicator |
| | POWER,
TX100,
FX100,
FX Link/ACT,
TX Link/ACT,
FDX |
| Working temperature |
| | 0~50 °C |
| Storage temperature |
| | -20~70 °C |
| Humidity |
| | 5%~90%(non-condensing) |
|
|
Back to Top
|
|
|
|
|
|
|
|

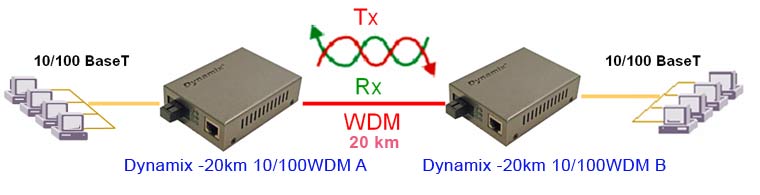

| Dynamix -20km 10/100WDM(A/B)
|
WDM Fiber Optic Media Converter 100WDM53/20
10/100 М , single mode, 20 km |
|
|
Back to Top |
|
