Dynamix DW Phone LP Ц 201/S/H (prior to DYNAMIX DW-Phone/H)
VoIP-phone
Specification | Back panel | Ordering information
IP-phone Dynamix DW-Phone/H

View Larger Picture

Dynamix DW Phone LP Ц 201/S/H is a full-featured IP-based telephone set for office telephony via Ethernet base communication. Over the office LAN connection, it provides IP-PBX solution such as station-to-station call, IP call and local PSTN/PBX extension call via PSTN Gateway. The traditional PBX functionality is provided with H.450 features together with Gatekeeper or IP/PBX Call Manager. Two 10/100BaseT embedded switch/hub RJ-45 ports allow connect to office LAN and PC on your table.
It is easily interface with ADSL/Cable Modem that is provided by ITSP, ISP or carrier company to provide VoIP services to residential and SOHO application. An integrated Analog Phone features provides IP call or PSTN call selection. Or to be a Plain Old Telephone set (POTs) when external power is failure.
It provides programmable keys and feature buttons, an internal high-quality speakerphone with microphone mute, HOLD function, FORWARD and TRANSFER feature buttons.
User's manual
      H.323  2.1 Mb
      SIP
  1.6 Mb
Quick start

Х Support ITU-T H.323 V2/V3/V4 protocol (Dynamix DW Phone LP Ц 201/H)
Х PPPoE†
Х When PPPoE re-connect, LAN Phone will reboot, and on LCD will display related messages
Х Behind NAT router or IP sharing device†
Х Support two LAN phones behind the same NAT
Х If the NAT supports multi public IP, the LAN phones that behind the NAT can be found by its IP address
Х Support both Fixed IP and DHCP
Х Support H.235 security function
Х Support Fast Start and H.245 Tunneling
Х Provide H.450 services (Hold, Transfer, Forward)
Х Up to ten E.164 phone number
Х LED configuration password protection†
Х Automatically Gatekeeper Discovery†
Х Alternate Gatekeeper selection
Х Provide Peer-to-Peer Mode (Non Gatekeeper needed) selection
Х 2 x 24 dot matrix LCD display
Х Speaker phone and Handset operation
Х Ring tone, Speaker and Handset volume adjustable
Х 10 sets last number redial
Х LCD Display: Time, Date, Caller ID, Call Duration
Х 12 Number Keypads: 0 to 9, # and *
Х 4 LCD operation keys : OK, C, LEFT and RIGHT
Х 10 function keys for Memory dial or Multi-Line function
Х 8 one touch function keys : Speaker, Redial, Mute, Hold, Transfer, Call Forward, PSTN, Message
Х 5 LED display : PSTN, Message, Hold, Mute and Speaker
Х Enter IP phone and Gatekeeper IP address from Keypads
Х Configure Dial path selection
Х MS-NetMeeting v3.0 compatible
Х Support QOS by setting TOS (Type Of Service) parameters of VoIP packet
Х Support 802, 1P1Q, VLAN, DiffServ for LAN Phone 201 only
Х Phone book via web interface can set 20 sets
Х Support DDNS server (www.dyndns.org or www.3322.org)
Х Audio
Х G.711 A/u-Law, G.723.1, G.729A, G.729
Х VAD (Voice Activity Detection), CNG (Comfort Noise Generate)
Х G.168/165 echo cancellation†
Х Programmable Dynamic Jitter Buffer
Х Bad Frame Interpolation
Х Completed voice band signaling support†
Х Provide both Inband and H.245 Outband DTMF generation/detection
Х Gain/Attenuation Settings
Х Provide Progress Tone: Dial tone, busy tone, call-holding tone and ring-back tone†
Х PSTN port is working when power is failure†
Back to Top

Interface
 Two10/100BaseT Ethernet port with Switch/Hub inside
  One RJ-11 PSTN analog line interface
  Input Voltage 9Vdc (External AC input, DC output adaptor)

LED indicator for system status
 SPEAKER : Speaker Phone working status
  MESSAGE : Message indication
 LINK/ACT : 10/100BaseT status
  HOLD : IP call put on hold indication
  MUTE : IP call is in Mute status
  PSTN : Selection between IP call and analog line call

Management Features
 TFTP/FTP download
  Two easy ways for system configuration
  TELNET
  LCD Front Panel

Environmental
 Humidity: 10 to 95 %, Non-condensing
  Operational Temperature : 0 to +50 C
  Storage Temperature : -10 to +70 C

Certification
 CE

Chassis
 Dimension: 215mm(W) x 71mm(H) x 198mm(D)
  Weight (unit): 834 g

Back to Top

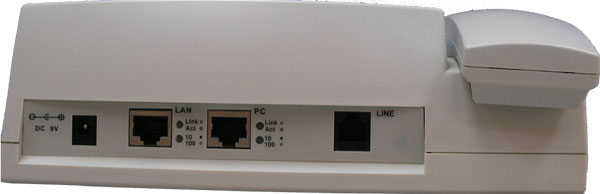

Back panel IP-phone Dynamix DW Phone LP Ц 201/S/H
Back to Top

Dynamix DW Phone LP Ц 201/H IP-phone (H.323)
Dynamix DW Phone LP Ц 201/S IP-phone (SIP)
