Integration of two territorial distributed networks
|
At a necessity providing of connecting of two local networks, carried on distance an about 5-7 km is possible to use the SHDSL technology and digital SHDSL modems, with symmetric data rates for upstream and downstream traffic and the date rates is up to 2.3 Mbps.
The environment of data transmission is the copper dedicated line (own or leased).
|
| |
1. DYNAMIX UM-UM SHDSL NTU

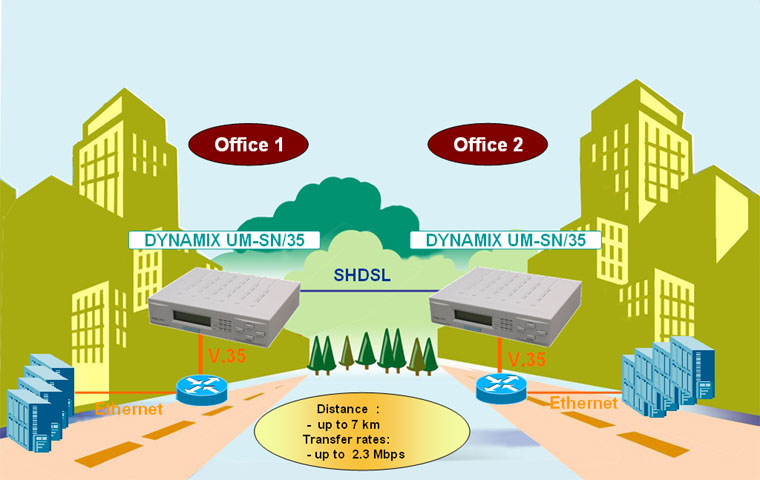

modem/router (See on a picture Office 1 and 2).
DYNAMIX UM-SN/35 allows connecting users to high - speed TDM services with Protocol V.35.
V.35 interface provided the broadband data transfer up to 2.3 Mbps.
DYNAMIX UM-SN/35 can be configured and managed via EOC, or menu-driven VT100 compatible Asynchronous Terminal Interface, either locally or remotely.
Dynamix UM SHDSL NTU is equipped with an auto rate capability that identifies the maximum line rate supported by the copper loop. This powerful automatic configuration capability makes installation and service provisioning simple and transparent.
There are two art of this equipment: DYNAMIX UM-SN/35 AC with the all-mains of alternating current and DYNAMIX UM-SN/35 DC - with the constant-current system. The last model is most often used at options on automatic telephone system.
|
| |
|
| |
|
