Dynamix DW IAD – 162/S/H (prior toDYNAMIX DW-01 Plus)
VoIP gateway with 1 FXS port and 1 PSTN port 1 WAN and 3 ports 10/100 BT
Specification | Front panel | Back panel | Application | Ordering information
Dynamix DW IAD – 162/S/H VoIP gateway with 1 FXS port and 3 ports router

 View Larger Picture

 The Dynamix DW IAD – 162/S/H is a one-port telephone extension and three ports SOHO Router to IP network gateway. It provides Data transfer by 10/100Mbps, telephone services and T.38 fax over IP network with easily operation and configuration. It is most suitable for SOHO and small-to-medium enterprise in Internet communication environment.
The Dynamix DW IAD – 162/S/H provides IP telephone number for end users with FreeTalk voice service. User can make phone call via Internet now. No more long distance and international telephony fee! It also connects three computers without another IP sharing as showed as following diagram. The Dynamix DW IAD – 162/S/H provides two telephone numbers that one is IP telephone number and the other is PSTN telephone number in one device for end users. You can make phone call via Internet or PSTN in one telephone set now. No more long distance and international telephony fee! Especially, User still can make phone call when external power is failure. The Dynamix DW IAD – 162/S/H also can connect three computers with embedded IP sharing and DHCP server function. 		User's manual
      H.323  4.0 Mb
      SIP    3.4 Mb
Quick start

• Support H.323 (Dynamix DW IAD – 162/S/H) and SIP protocol
• ISP/ITSP (Internet Telephony Service Provider)
• one WAN port 10/100Base-T Ethernet RJ-45
• VoIP gateway with one FXS and PSTN ports
• Automatically Dial Path Selection (IP or PSTN)
• Parameters of VoIP packet
• IP-PBX with office telephony services
• Telephone /PBX call via IP network
• Voice Quality
• VAD (Voice Activity Detection)
• CNG (Comfort Noise Generation)
• G.165/G.168 compliant echo cancellation
• Bad Frame Interpolation
• Provide both in-band and out of band DTMF generation/detection
• Gain/Attenuation Settings
• G.165/G.168 compliant echo cancellation
• Provide Progress Tone: Dial tone, busy tone, 2nd dial tone, call-holding tone and ring-back tone
• Support QOS through parameters TOS (Type Of Service) VoIP packages
• Caller ID
• Generation (FSK)
• Tone
• DTMF / CPT (Call Progress Tone) generation/detection
Back to Top

Protocol
 ITU-T H.323 v2/v3/v4
  SIP RFC3261

Supplementary service
 H.450 (Call Hold, Call Transfer, Call forward)
  FAX support
  Automatically FAX detection
  Support T.38 protocol

Codec
 G.711A/u-law, G.723.1, G.729A

FXS interface
 One RJ-11 Telephone port (FXS)
  One PSTN port

Voice Quality
 VAD (Voice Activity Detection)
  CNG (Comfort Noise Generation)
  G.165/G.168 compliant echo cancellation
  Programmable Dynamic Jitter Buffer
  Bad Frame Interpolation
  Provide both in-band and out of band DTMF generation/detection
 Gain/Attenuation Settings
  G.165/G.168 compliant echo cancellation
  Provide Progress Tone: Dial tone, busy tone, 2nd dial tone, call-holding tone and ring-back tone
  QoS
  TOS
  Caller ID
  Generation (FSK)
  Tone
  DTMF / CPT (Call Progress Tone) generation/detection

TCP/IP
 Support Fixed IP and DHCP
 PPPoE, ADSL Environment

Security
 Support H.235 security function
  Configuration & management
 TELNET, Web Browser

Upgrade
 Firmware upgrade through network by TFTP/FTP

Power
 Input AC 100V~240V Output DC12V

Parameters of the external ambience
 Operation Temp 5° C to 40° C
  Humidity 10% to 90% (Non-condensing)

Certification
 CE, FCC

Physical parameters
 Dimension: 190mm(H) x 110mm(W) x 51.5mm(D)
  Weight (unit): 0.3 kg

Back to Top

Front panel Dynamix DW IAD – 162/S/H VoIP gateway with 1 FXS port and 3 ports router
Back to Top


Back panel Dynamix DW IAD – 162/S/H VoIP gateway with 1 FXS port and 3 ports router

Back to Top

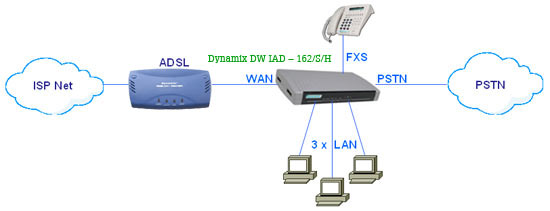

Application Dynamix DW IAD – 162/S/H VoIP gateway with 1 FXS port and 3 ports router

Back to Top
Dynamix DW IAD – 162/H VoIP gateway with 1 FXS port and 1 PSTN port 1 WAN and 3 ports 10/100 BT (H.323)
Dynamix DW IAD – 162/S VoIP gateway with 1 FXS port and 1 PSTN port 1 WAN and 3 ports 10/100 BT (SIP)
