DYNAMIX DV - 8
VDSL IP DSLAM
Specification | Front panel | Back panel | Ordering information

Dynamix DV-8

View Larger Picture

    The DYNAMIX DV - 8 is a VDSL IP DSLAM  that aggregates 8 lines of 4-band Very-High-Data-Rate Digital Subscriber Line (VDSL) into Giga Ethernet uplinks for high-speed data/Internet services.
   Based on QAM-based 4-band VDSL technologies, DYNAMIX DV - 8 - VDSL IP DSLAM extends data service with line rate of solution for services such as remote lecturing, telemedicine, video conferencing, Video-on-Demand (VoD), IP-TV etc., Internet  access and other various high-speed data applications.
  When the number of subscribers increases, the second uplink fast Ethernet interface can be used to daisy chain to another VDSL IP DSLAM DYNAMIX DV - 8. Alternatively, multiple DYNAMIX DV - 8 can be connected to another LAN switch to form a two-tier configuration, thus supporting a lot more subscribers.
  The VDSL IP DSLAM DYNAMIX DV - 8 is an ideal solution for delivering costeffective, high-performance broadband/multimedia services to Multi-Tenant Units (MTUs) or Multi-Dwelling Units (MDUs) such as hotels, campus, hospitals and telecom.
  		User's manual
              0.6 Mb
Quick start


Features Dynamix DV-8
• Compliant with IEEE 802.3 & 802.3u Ethernet Standards
• Compliant with ETSI, ITU, ANSI standards
• Supports 5M/15M/25Mbps per port symmetrical bandwidth over phone wiring with long driver capable (1.7/1.1/0.6Km)
• Provides 2 x 10/100/1000Mbps Ethernet RJ-45 Ports with Auto MDI/MDIX
• Supports quality of phone wiring detected with SNR(Signal to Noise Ratio) indications
• Flow control method by IEEE802.3x for Full Duplex & Back Pressure for Half Duplex
• Supports Auto-speed
• Ethernet transport with POTS / ISDN traffic over single copper wire pair
• Spectral compatibility with XDSL, ISDN(2B1Q/4B3T),HomePNA.
• Supports port security with MAC address filtering & IP limitation.
• Supports Web Base and Telnet for remote management
• Supports system POST LED
• Cascading up to 8 Units along with Giga switch
• Surge protected for VDSL ports
• Splitter on board, POTS/ISDN splitter port:8 x RJ-45
• VDSL port:8 x RJ-45
• MAC address table:8K Entries
• Switching method:Store-and-forward
• RS-232 console port:DB-9Pin Female / 9600bps
• Port security by MAC address filtering
• VDSL Frequency Spectrum:Transmitter: 0.9MHz ~ 3.9MHz, Receiver: 4MHz ~ 7.9MHz
• Safety: FCC, CE Mark
• RoHS compliant
Back to Top
Specifications Dynamix DV-8

Standards
 Compliant with IEEE 802.3 & 802.3u Ethernet Standards
  Compliant with ETSI, ITU, ANSI standards

LAN
• Provides 2 x 10/100/1000Mbps Ethernet RJ-45 Ports with Auto MDI/MDIX
• MAC address table:8K Entries
• Switching method:Store-and-forward

VDSL and LAN Features
• Compliant with IEEE 802.1v protocol-base VLAN classification
• Compliant with IEEE 802.1p COS by class of service with 2-level priority queuing
• Compliant with LACP IEEE 802.3ad Trunking
• Supports Multicast IP table/IGMP v2 with 512 groups
• Supports LACP IEEE-802.1ad Port Trunking(Link aggregation)
• Supports IEEE 802.1d Spanning trees for MAC bridge with redundant link
• Supports port Mirroring (Sniffer)
• Support Broadcast Storm filtering
• Supports RMON groups 1(Statistics), 2(Alarm), 3(Event), 9(History)
• Supports GARP/GVRP IEEE-802.1p/q VLAN with 256 groups static Vid or 4094 groups dynamic Vid

POTS/ISDN
• Spectral compatibility with XDSL, ISDN(2B1Q/4B3T),HomePNA.
• Ethernet transport with POTS / ISDN traffic over single copper wire pair
• POTS/ISDN pass filter spectrum: 0 ~ 630 KHz

Management
• Supports SNMP v1 RFC-1493 Bridge MIBs:RFC-1643 Ethernet MIB, RFC-1213 MIB II, Netsys Enterprise MIB
(Fan and Temperature management)
• Supports In-Band/Out-of-Band Management
• Supports Fan & Temperature Monitor & management
• RS-232 console port:DB-9Pin Female / 9600bps
• Supports TFTP/XMODEM for firmware upgrade

LEDs
 Power good and POST LED
 Link/Active/Speed Status for Ethernet port
  Link for VDSL port

Physical & Environmental
  Operating Temperature : 0°C ~ 50°C(41F ~ 122F)
  Storage Temperature : - 20°C ~ 65°C(-4F ~ 149F)
 Humidity: 10%~90% non-condensing
 Dimensions: 435 x 255 x 44 mm
  Internal switching power adapter Input: AC 85-265 volts/50-60Hz/1A

Back to Top
Front Panel Dynamix DV-8


Back to Top

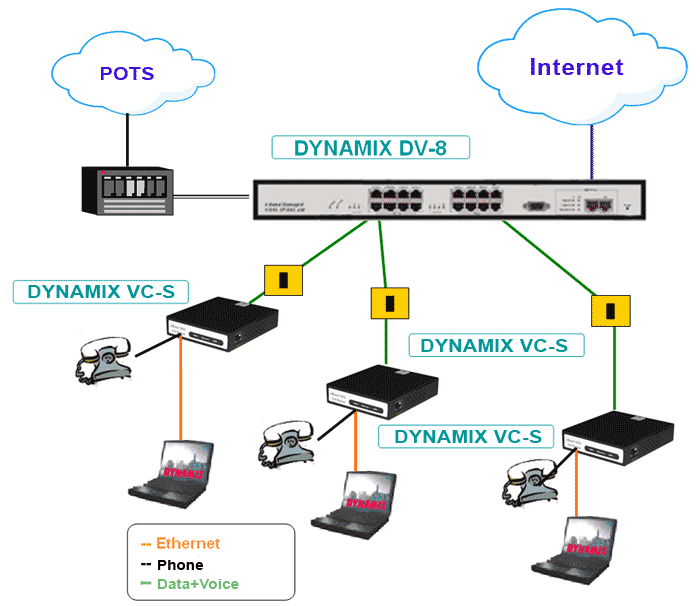

Application Dynamix DV-8
Ââåðõ
 DYNAMIX DV- 8  VDSL IP DSLAM  (8 ports VDSL, 2 x 10/100/1000Mbps Ethernet,  25 Mbps)
