DYNAMIX VC - S4
|
| 4
Band VDSL CPE modem with 4 ports Switch
|
|
|
View Larger Picture
|
The
DYNAMIX VC - S4 utilizes Ethernet to /from VDSL subscriber-site conversion bridge. The
DYNAMIX VC - S4 uses QAM-based 4-band VDSL technology which supports high bandwidth up to 25Mbps symmetrical data service.
The

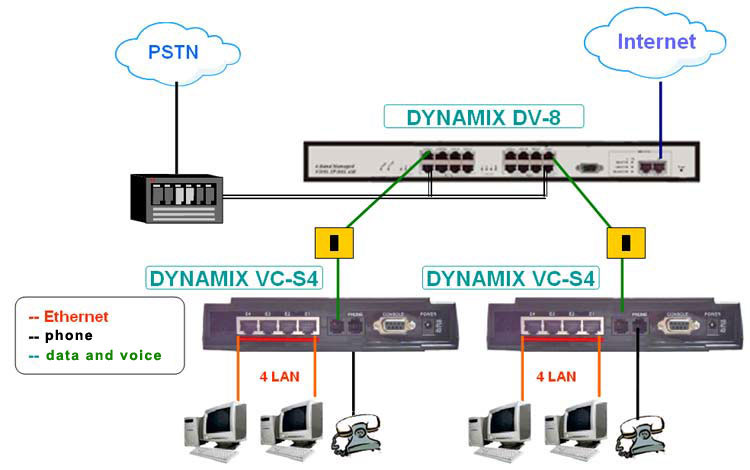

DYNAMIX VC - S4 also works with Dynamix DV-8
/ Dynamix DV-24
VDSL IP DSLAM, together to form a cost-effective solution for services such as remote lecturing, telemedicine, video conferencing, Video-on-Demand (VoD), IP-TV, Internet
access and various high-speed data applications.
The front-panel provides LEDs indication of system and interface status. The built-in POTS/ISDN splitter allows a
standard POTS phone or ISDN device to be connected. Full or half-duplex mode of LAN operations is automatically
sensed and configured. VDSL link rates are configured by local IP DSLAMs over a fix-speed and an auto-speed
function.
Therefore,
DYNAMIX VC - S4 supports fix-speed, auto-speed, plug & play
operations on the subscriber-site, and are part of an ideal solution
for delivering cost-effective, high-performance broadband/multimedia
services to Multi-Dwelling Units (MDU) and Multi-Tenant Units (MTU)
environments such as hotels, campus, hospitals and telecom.
|
User's manual
Quick start
|
|
|
|
| • |
Compliant with IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX standard |
| • |
Compliant with ETSI, ITU, ANSI standards |
| • |
Supports high bandwidth up to 25Mbps symmetrical |
| • |
Provides Power LED and LED indication
Link/Active Status for Ethernet port and 5/15/25Mbps link/speed for
VDSL port |
| • |
Supports 1 * RJ-11 connector for Ethernet over VDSL |
| • |
Supports 1 * RJ-11 connector for
telephone/PBX connection |
| • |
Supports 4 * RJ-45 port for 10/100Mbps Ethernet with Auto
MDI/MDIX |
| • |
Supports Auto-speed and full duplex for VDSL port |
| • |
Supports long packet size up to 1536 bytes |
| • |
Supports POTS/ISDN voice pass and 4 wires phone set pass through |
| • |
Voice and Data work on the same telephone line |
| • |
Spectral compatibility with
xDSL, ISDN (2B1Q/4B3T) |
| • |
Supports flow control IEEE802.3x for Full Duplex / Back Pressure for Half Duplex |
| • |
Supports Surge protection |
| • |
EMI certified by CE, FCC |
 Back to Top
|
|
|
|
| Standards |
| | IEEE802.3 standard |
| | IEEE802.3u standard |
| | Compliant with
ETSI, ITU, ANSI standards |
|
| Interface |
| | 4 * RJ-45 10/100Mbps Ethernet port |
| |
1 * RJ-11 connector for EoVDSL |
| |
1 * RJ-11 connector for telephone connection |
| |
1 * RS-232C / 19200bps for Console port |
| Cable Connections |
| |
RJ-45 (Ethernet): Category 3, 4, 5
UTP/STP |
| |
RJ-11 (EoVDSL): Twisted-Pair phone wire |
| LED indication |
| | Power |
| | Link/Active Status for Ethernet port |
| | 5/15/25Mbps
Link/Speed for VDSL port |
| VDSL Frequency Spectrum |
| | Transmitter: 4MHz ~ 7.9MHz |
| | Receiver: 900 KHz ~ 3.9MHz |
| POTS/ISDN pass filter Spectrum |
| | 0 ~ 630Khz |
| Physical & Environmental |
| | Operating
temperature: 0°C ~ 50°C (41°F ~ 122°F) |
| | Storage
temperature: -20°C ~ 65°C (-4°F ~ 149°F) |
| | Operating
humidity: 10% to 90% (non-condensing) |
| | Dimension: L x W x H =
184 x 146 x 40 mm (7.2" x 5.74" x 1.57”) |
| | Power consumption :
6w |
| | External power adapter:
Input: AC 85-240 volts/50-60Hz
Output: DC 12V/1A |
|
|
Back to Top
|
|
|
|
|
|
|
Back
to Top
|
|
|
|
|
|
| DYNAMIX VC -S4 |
4
Band VDSL CPE modem with 4 ports Switch
|
|
|
