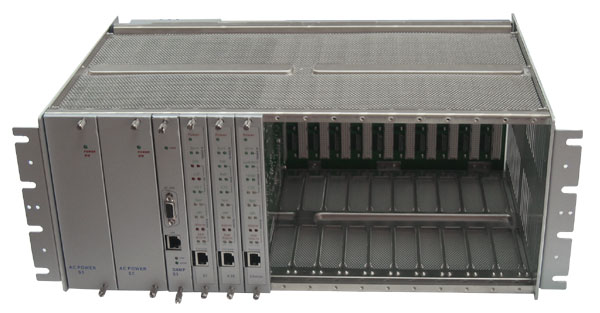

Dynamix 3000 Series - 19" Chassis G.shdsl Rack Mount |
|
Master Unit: Chassis |
|
Dynamix 3200-AA |
19" 4U Rack mount Chassis for AC+AC power 14 slot Chassis for up to 13 optional Line cards + 1 SNMP card without AC power card, SNMP card, Line cards |
|
Dynamix 3200-AD |
19" 4U Rack mount Chassis for AC+DC power 14 slot Chassis for up to 13 optional Line cards + 1 SNMP card without AC power card, SNMP card, Line cards |
|
Dynamix 3200-DD |
19" 4U Rack mount Chassis for DC+DC power 14 slot Chassis for up to 13 optional Line cards + 1 SNMP card without SNMP card, Line cards |
|
Cooling FAN for Dynamix 3000 Series |
|
Dynamix 3200-CF |
19" 1U Cooling FAN |
|
Power modules for Dynamix 3000 Series ( Redundant power protect available ) |
|
Dynamix 3210 |
AC 110V/ AC220V Power Board |
|
Optional Networking management module for Dynamix 3000 Series |
|
Dynamix 3220 |
SNMP I/F card with MIB |
|
Line cards for Dynamix 3000 Series |
|
Dynamix 3000 (TDM Base) |
G.shdsl ( 2Loop / 2W) -E1( 2 Channels) Line Card |
|
Dynamix 3010 (TDM Base) |
G.shdsl (2Loop / 2W) -V.35( 2 Channels) Line Card |
|
Dynamix 3020 (TDM Base) |
G.shdsl (2Loop / 2W) -10/100 Base-T(2 Channel) Line Card |
|
Optional Cables |
|
Dynamix 3000-C1 |
E1 adapter cable : HD26 Male to 1 x RJ45 Female, 2 meter |
| Dynamix 3000-C2 |
E1 adapter cable : HD26 Male to 2 x BNC Female, 2 meter |
| Dynamix 3010-C1 |
V35 adapter cable : HD26 Male to 1 x MB34 Female, 2 meter |
| Dynamix 3020-C1 |
Ethernet adapter cable : HD26 Male в 1 x RJ45, 2
meter |
