Solution on the base of SHDSL equipment of Dynamix series
Connection of the remote offices to Internet
For necessity providing of connecting to Internet of different offices or branches, located in the distance an about 5-7 km from the service provider, is possible to use of SHDSL and ADSL technologies.
SHDSL technology can be created then, when the datastream from offices or branches is symmetric ( upload speeds and download speeds are the same). The typical example of such offices can be, for example, publishing companies, there are receiving and sending a lot of data information.
The environment of data transmission is the dedicated copper line (own or leased).

 In this case in the offices can be created:

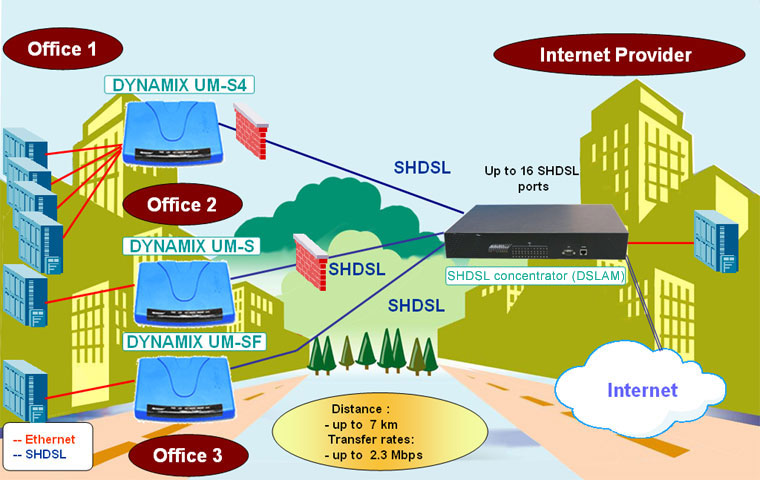

1. DYNAMIX UM-S4 SHDSL modem/router (See on a picture Office 1). This device provides support up to 4 Ethernet ports and allows connecting to 4 computers of users to Internet, that usually sufficiently for small offices and branches. At the use of this device safety of access must be provided additional programmatic or hardware on the user side. In place of DYNAMIX UM-S4 SHDSL modem/router is possible to use the similar SHDSL modem/router - DYNAMIX UM-S4F, with built in (firewall) - functions of protection.

2. DYNAMIX UM-S SHDSL modem/router (See on a picture Office 2). This device has one Ethernet port and allows connecting either one user (one computer) to Internet, as shown on a picture or with the using of the additional office Ethernet switchboard - to provide connecting of all computers, included in an office network. At the use of this device access protection must be provided additional programs on the user sides.

3. DYNAMIX UM-SF SHDSL modem/router - (See on a picture Office 3). This device has one Ethernet port and allows connecting either one user (one computer) to Internet, as shown on a picture or with the use of the additional office Ethernet switchboard - to provide connecting of all computers, included in an office network. DYNAMIX UM-SF SHDSL modem/router has the built in protection functions - (Firewall).

On the side of provider can be created:
SHDSL concentrator (DSLAM), providing direct access to Internet. It is possible the using also of analogy SHDSL concentrators of other vendors.

 Solution on the base of SHDSL equipment of Dynamix series Connection of the remote offices to Internet
