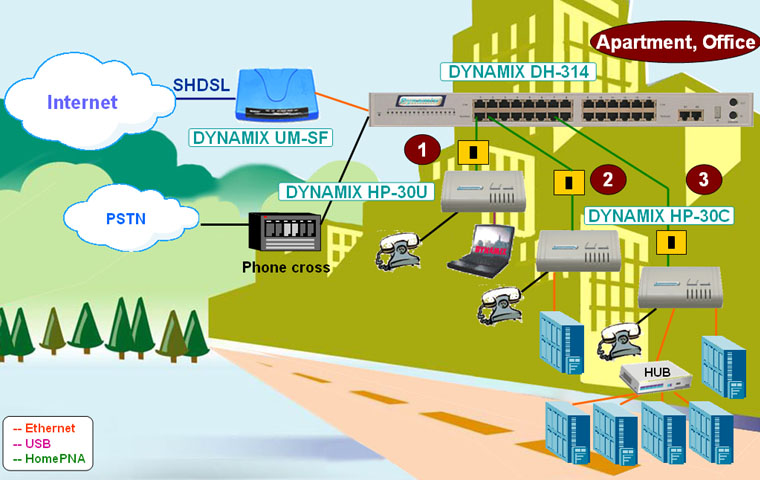

Solution on the base of HomePNA equipment of Dynamix series
Connection of the offices(apartments) to Internet on the telephone line
The Home Phoneline Networking Alliance (HomePNA), the organization driving the development and adoption of a single phoneline networking technology, set a new standard for home networking today by finalizing its third-generation technology, HomePNA 3.0. Surpassing industry expectations, the final HomePNA 3.0 reaches an unprecedented data rate of 128 Mbps with optional extensions reaching up to 240 Mbps. As the only home networking industry specification capable of reaching above 100 Mbps and with inherent deterministic Quality of Service (QoS), HomePNA technology complements wireless networking technologies providing the ideal high speed backbone for a home multimedia network requiring a fast and reliable channel to distribute multiple, feature-rich digital audio and video applications throughout a home. Using existing home telephone wiring, HomePNA 3.0 enables consumers with multiple PCs to take advantage of a single, high-speed Internet connection to simultaneously check e-mail, browse the Web, and share peripherals as well as to stream audio and video content to consumer electronics devices and PCs without interfering with standard telephone services.

The existing phone lines transmit voice messages with distance of 600 meter.

 In this case in house (office) can be created:
1. DYNAMIX DH-314 – HomePNA 3.0 concentrator , equipped with 14 ports 128 Mbps HomePNA and 2 10/100/1000 Base-TX.
HomePNA concentrator is used for data transmission on existing telephone lines, and they do not require expensive cable but use already installed telephone cables.
For saving of telephone service, all incoming telephone lines are intended for data transmission and switch on from the telephone cross in the house in concentrator, and then to the users.

2. Dynamix UM-SF SHDSL modem/router This device has one Ethernet port and allows to connection the office or house to Internet . DYNAMIX UM-SF SHDSL modem/router has the built in protection functions - (Firewall).

In the side of the house (office) can be created :
1. DYNAMIX HP-30U HomePNA 3.0 USB adapter.
HomePNA converter is used for connection of computers with USB interfaces to HomePNA networks. DYNAMIX HP-30U is an ideal and simple solution for such interactions. If existing phone lines transmit voice messages, DYNAMIX HP-30U allows transmitting multimedia data at a speed of 128 Mbps, such as video on demand, Internet traffic, multi-user plays etc. at distance of 600m.(see picture Office 1)

2. Dynamix HP-30C HomePNA 3.0 Ethernet adapter.
DYNAMIX HP-30C is an ideal and simple solution for these networks interaction without any additional drivers and programs, this is a “plug and play” device.

If existing phone lines transmit voice messages, DYNAMIX HP-30C allows transmitting multimedia data at a speed of 100 Mbps, e.g. video on demand etc. at a distance of 600 m. For example, in Office 2 is used only one computer with connection to Internet,. In Office 3 - one computer is connected directly to HOMEPNA 3.0 adapter, and other four - connected to the second Ethernet interface of converter via additional switchboard.

 Solution on the base of HomePNA equipment of Dynamix series Connection of the offices(apartments) to Internet on the telephone line
