The applied
equipment: Dynamix DW FXS – 04/S, Dynamix DW 4 FXO/S
|

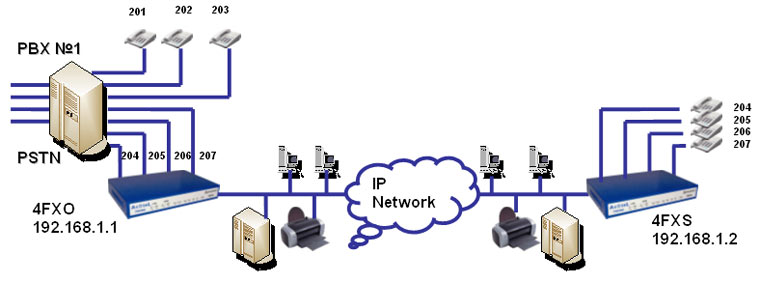

The general configuration of Dynamix VoIP Gateway
1. Network setting- default IP Address, default Mask and Gateway
2. All gateways must be in Gatekeeper (SIP-Proxy) mode or Peer-to-Peer
3. Chose in Gatekeeper mode (SIP-Proxy) the IP Address
4. Select the phone number for all ports of VoIP gateways
5. Add in Phone book : the name , telephone number and IP-Address of gateways
|
Configuration of VoIP gateway with IP-Address – 192.168.1.2 (4FXS)
usr/config$ flash –clean
usr/config$ ifaddr -ip 192.168.1.2 -mask 255.255.255.0 -gate 192.168.1.254
usr/config$ h323 -mode 1
usr/config$ h323 -line1 501 -line2 502 -line3 503 -line4 504
usr/config$ line -config 1 hotline 801
usr/config$ line -config 2 hotline 802
usr/config$ line -config 3 hotline 803
usr/config$ line -config 4 hotline 804
usr/config$ pbook -add name 801 ip 192.168.1.1 e164 801
usr/config$ pbook -add name 802 ip 192.168.1.1 e164 802
usr/config$ pbook -add name 803 ip 192.168.1.1 e164 803
usr/config$ pbook -add name 804 ip 192.168.1.1 e164 804
usr/config$ commit
usr/config$ reboot
Configuration of VoIP gateway with IP-Address – 192.168.1.1
(4FXO)
usr/config$ flash –clean
usr/config$ ifaddr -ip 192.168.1.1 -mask 255.255.255.0 -gate 192.168.1.254
usr/config$ h323 -mode 1
usr/config$ h323 -line1 801 -line2 802 -line3 803 -line4 804
usr/config$ line -config 1 hotline 501
usr/config$ line -config 2 hotline 502
usr/config$ line -config 3 hotline 503
usr/config$ line -config 4 hotline 504
usr/config$ pbook -add name 501 ip 192.168.1.2 e164 501
usr/config$ pbook -add name 502 ip 192.168.1.2 e164 502
usr/config$ pbook -add name 503 ip 192.168.1.2 e164 503
usr/config$ pbook -add name 504 ip 192.168.1.2 e164 504
usr/config$ commit
usr/config$ reboot
FAX T.38 – enable this function to support the FAX function
$ support –t38 1 –t38ecm 0 –faxrdd 2 –fstart 1 –tunnel 1 –h245fs 1
Telephone Number up 204 to 207 is for destination’s IP
Address
|
| |
| |
|
