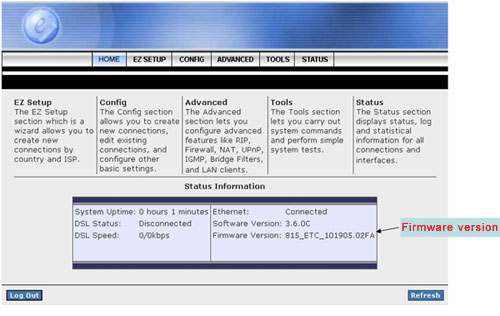

| If you modem has the firmware version 815_etc_101905.02FA – please, see the picture below,
you must upgrade your firmware version . The new firmware version is
815_NB_030606.00FA .
Please read the firmware release note carefully before proceed the upgrading process.
The firmware upgrading for Dynamix UM-A Plus
The following procedures will help you to upgrade your ADSL 2+ router:
1. Provide a no-break power to the modem and a computer with which you will be made updating. In case of voltage drop or disconnection, the modem can be damaged.
2. Load the new firmware version on http://doc.dynamix.ua/ADSL/UM_APl/FW/nsp.annexA.firmware.upgrade.img
and save the firmware in the folder on your hard drive (the folder name and path is case sensitive).
3. Connect your PC with LAN port of Dynamix UM-A Plus by using an Ethernet cable.
4. Enter the web browse of configuration setting (default IP address is 192.168.1.1).
5. Click on “TOOLS” and select “UPDATE GATEWAY” .
6. Select a File: Click on the Browse … button to locate the Firmware or update image file from your computer’s hard drive.
7. Press the «Update Gateway» button.
8. The upgrade process will typically take about 1~2 minutes. When the upload is complete, your ADSL2/2+ Router will automatically reboot and restart.
It is recommends that you back up your configuration before doing a firmware upgrade. After the
upgrade is complete, you may need to restore your configuration settings

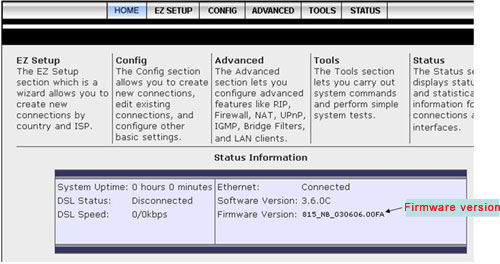

Check your new firmware version 815_NB_030606.00FA (see
below)
|
