Dynamix DW WP- 588
|
| Wireless VoIP phone |
|
|
|
|
|
|
| • |
IEEE 802.11 b/g Compliance |
| • |
SIPv2 (RFC3261) compliance |
| • |
Graphic Color LCD and Equipped with
MPEG4/JPEG decode |
| • |
Be able to use as a handhold IP surveillance terminal |
| • |

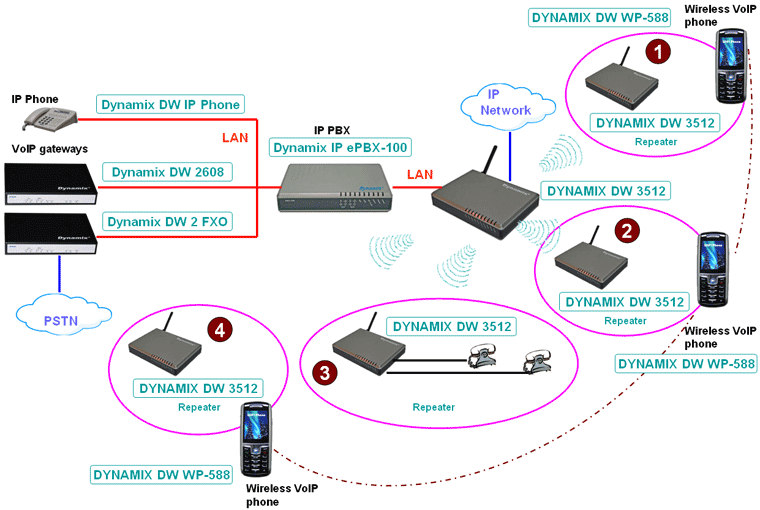

Combine to IP-PBX system for roaming talk @ office |
| • |
Superb design for HOME,
SOHO, and SMALL Office |
| • |
Charging by USB and Power Adaptor with USB type A
socket |
| • |
Bar-type and mobile phone-like
design, familiar with operating behavior |
| • |
Quick Operating Mode, free and easy to set the most
suitable mode for different occasion |
 Back to Top
|
|
|
|
|
| Physical Interface |
| | LCD Module:
- Display Format: Graphic 170*220 pixords
- View Size: 2”
- LCD Type: 16 bits color TFT
- Language: English
- Backlight |
| | Keypad:
- Number Key: 0~9
- Unlock Key (#)
- Asterisk key (*)
- Volume Adjustment Key: Down (-), Up (+
- Power on/off and End key
- Answer/Send key
- Menu and select key
- Left key
- Right key |
| | Power Jack (Specified) |
| | Receiver (Speaker) / Microphone |
| Internet Protocol |
| | IPv4 (RFC 791) |
| | MAC Address
(IEEE 802.3) |
| | TCP/UDP (RFC 793/768) |
| | ARP (RFC 826) |
| | SDP ((RFC 2327) |
| | Static IP (WAN) |
| | DHCP Client
(RFC 2131) |
| | DNS Client |
| | STUN Client for NAT Pass Through |
| | HTTP 1.0 |
| | SNTP Client
(RFC 2030) |
| | Quality of Service
- TOS: Type of Service(RFC791/1349)
- DSCP (RFC 2475) |
| Wireless LAN |
| | Standard: IEEE 802.11 b/g compliant |
| | Frequency
Band: 2.400~2.497GHz (B/G) |
| | SSID / Broadcast SSID |
| | Channel: FCC Ch 1-11, ETSI Ch1-13, and Japan Ch1-14 |
| | Data Rate
Frequency: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| | Output Power: 14±1dBm |
| | Sensitivity: -82dBM @11Mbps |
| | Site Survey: Scan Available APs in handset's environment |
| | Operating
Rang: Outdoor upto 300M / Indoor upto 75M |
| | 802.1x Encryption and Authentication
- WEP (64/128bits)
- WPA-PSK/TLS/TTLS/PEAP(TKIP/AES)
- WPA2-PSK/TLS/TTLS/PEAP(TKIP/AES)
- User Certificate (Radius)
- Root Certificate (Radius) |
| | Multiple AP Profile |
| | Support WMM QoS and WMM Power Save |
| IP Telephony (VoIP) |
| | SIPv2 (RFC 3261):
- Outbound proxy setting for increasing performance, productivity, and security.
- Session Timers in the Session Initiation Protocol (SIP)-RFC4028
- A Privacy Mechanism for the Session Initiation Protocol
(SIP)-RFC3323 |
| | Voice Codecs:
- G.711 (a-Law/u-Law)
- G.723.1
- G.729
- iLBC-20 |
| | VAD – Voice Activity Detection with Silence Suppression |
| | CNG – Comfortable Noise Generation |
| | G.168 Acoustic Echo Cancelation |
| | Adaptive Jitter Buffer |
| | DTMF Relay: In-band and Out-of-band
(RFC 2833) |
| | Caller ID Display |
| | Tone / Vibrator
Generation:
- Ring Back Tone
- Busy Tone
- Waiting Tone
- Polyphony Ring tone
- Vibrator |
| | Volume
Adjustment: Speaker / Ring Tone |
| | Call
Features:
- Call Hold/Retrieve
- Call Transfer
- Call Forward (Unconditional/No Answer/Busy)
- Call Waiting
- Redial
- Mute
- Speed Dial
- Call History |
| | Phone Book |
| Other
features |
| | IPTV (option) |
| | Internet Radio
(option) |
| | MIC Earphone
(option) |
| | Quick
Operating:
- General Mode
- Vibrator Mode
- Ringer Mode
- Silence Mode
- Key Lock |
| | Battery
- Rechargeable Li-ion Battery
- Li-ion Charger Controller for automatic Charging
- Talking Time: 3-4 hours
- Standby Time: 70-80 hours |
| | Power Charging
- USB Charging
- AC Adapter Charging |
| | Security
-
802.1x Wireless Encryption and Authentication
-
MD5 for SIP authentication (RFC 2069 / 2617)
-
Password protected Admin access authority |
| Setting and Maintenance |
| | Setting &
Update via Web Browser (HTTP) / LCD |
| | Access password setting and change |
| | Status
indication:
- SIP Status
- WLAN Status
- IP Status
- Version information |
| | Date &
Time: SNTP and manual setting |
| Environmental |
| | Dimension: 45(W)*125 (H)*22 (D) mm |
| | Unit Weight: 80g
(Battery Included) |
| | Operating Temp. & Humidity
- Temp.: 0°C~45°C
- Humidity: 10%~85% relative humidity, non-condensing |
| | AC Power
Adaptor(with USB type A socket):
- INPUT: AC100V~240V, 50-60Hz
- OUTPUT: DC 5V, 1.0A |
| | Rechargeable Li-ion
Battery: 3.7V / 700mAh or 900mAh |
| | Regulatory: FCC
(Part 15, Class B) & CE Processing |
|
|
