DYNAMIX VC - M/S
VDSL modem
Specification | Front panel | Back panel | Ordering information

View Larger Picture

   The VDSL (Very High Data Rate DSL) networking solution delivers cost-effective, high-performance broadband access to multiunit buildings.
    Dynamix VC-M / VC-S modem is an Ethernet to VDSL CO side adapter that enables high speed internet access to building residents, access campuses students and hotel guests by connecting Ehternet equipped computers, set-top box or any internet device to the existing telephone wires.
   Dynamix VC-M/ VC-S series VDSL CO is simple to install and use. One RJ-45 Ethernet connects to a Router, Ethernet Switch or to LAN card. The RJ11 ports available to connect to any existing modular phone jack. There are two RJ-11 jack to provide a phone extensions.

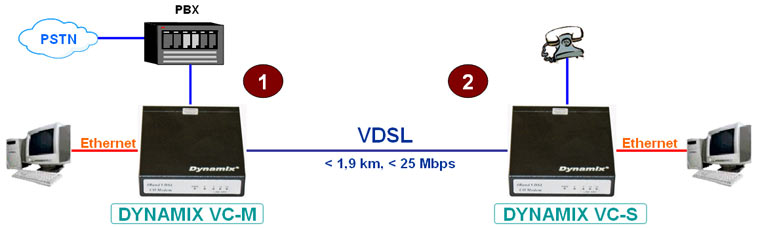

   Dynamix VC-M / VC-S provide high-speed point-to-point network connections up to 2100m over existing phone lines.
    Dynamix VC-M/ VC-S can be work the link at 5Mbps and achieve maximum distances up to 1900m, 15Mbps to achieve maximum link speed when distances are below 1300m and 25Mbps to achieve maximum link speed when distances are below 600m. Dynamix VC-M/ VC-S modem also features built-in surge protection and built-in POTS/ISDN splitters to extend telephone (POTS/ISDN/PBX) service over the same 2 wires.
User's manual
              0.6 Mb
Quick start
              0.25 Mb

 VDSL Modem for cost-effective point-to-point applications
Link speeds of 5/15/25 Mbps with distances up to 1000m over existing phone lines
Supports 1* DIP Switch for speed selectable(Dynamix VC-M only)
Compliant with IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX standard
Spectral compatibility with xDSL, ISDN (2B1Q/4B3T)
Support Auto-speed & full duplex for VDSL port
Supports flow control IEEE802.3x for Full Duplex & Back Pressure for Half Duplex
Supports long packet size up to 1536 Bytes
Supports 4wires phone set pass through
Accommodates POTS/ISDN service over the same phone line
Built-in POTS/ISDN splitter
Provides LED indication Link/Active Status for Ethernet port and Link for VDSL port.
Supports Surge protection.
Auto-sensing 10/100 Mbps Ethernet port
Compact desktop design
Back to Top

Standards
 Compliant with IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX Ethernet Standards
 Compliant with ETSI, ITU, ANSI VDSL standards

VDSL Features
 1 High-speed Link presented on an RJ-11 connector with built-in surge protection
  - 5 Mbps up to 1900m
  - 15 Mbps up to 1300m
  - 25 Mbps up to 600m
 Transmitter operates between 4MHz ~ 7.9MHz
 Receiver operates between 0.9MHz ~ 3.9MHz
 Spectral compatibility with xDSL, ISDN(2B1Q/4B3T)

POTS/ISDN
 1 POTS/ISDN line presented on an RJ-11 connector with integrated POTS/ISDN splitter
 Band pass filter spectrum: 0 - 630 KHz

Ethernet Port
 Supports flow control for full-duplex operation
 Supports back pressure for half-duplex operation

LEDs
 1 X Ready LED
 1 X VDSL LED
 1 X Ethernet LED

Switching Features
 Switching Method: Store-and-Forward
 MAC Address Table: 8K addresses

Configuration & Management Features
 Configuration software provided on included CD

DIP Switch
 Supports 1* DIP Switch for speed selectable(Dynamix VC-M only)

Physical & Environmental
 Operating Temperature
   - 0 to 50 °C
 Storage Temperature
   - -20 to 65 °C
 Humidity
   - 10% to 90% RH non-condensing
 Dimension
   - 110mm x 95mm x 24mm
 Weight
   - 314 g
 External switching power adapter Input: AC 85-240 volts/50-60Hz; Output: DC 5V/1A or above.

Back to Top

DIP Switch

Back to Top



Back to Top



Вверх
 DYNAMIX VC- M/S VDSL modem (distance up to 1.9 km, transfer rate up to 25 Mbps)
Back to Top
