DYNAMIX UM-V2 VDSL2 LAN Extender

DYNAMIX UM-V2

VDSL2 LAN Extender

Specification | Front panel | Application | Ordering information

DYNAMIX UM-V2 VDSL2 LAN Extender is a Long Reach Ethernet Extender with one Ethernet port (RJ-45 connector) and one VDSL port (RJ-45 connector). It is a bridge mode modem, well accommodating VDSL2 (Very-high-data-rate Digital Subscribe Loop) technology to extend Ethernet service over single-pair phone line. Supporting both symmetric and asymmetric transmission, it can reach up to 100/75 Mbps bandwidth (line rate) within 300M or 10/10 Mbps (line rate) for 1 Km long range connections. By providing ultra-high speed, DYNAMIX UM-V2 VDSL2 LAN Extender makes your telephone line achieve its best performance than before. It has the advantage of minimum installation time (simply as plug-n-play) and minimum expense by allowing video streaming and data to share the same telephone pair without interference.

DYNAMIX UM-V2 delivers everything needed to quickly deploy a high-speed IP-based network for providing high-speed Internet access, video-on demand services and voice services. The resulting compact, cost-effective form factor offers Systems Integrators, small business owners an attractive Long Reach Ethernet solution.

User's manual

Quick start

•

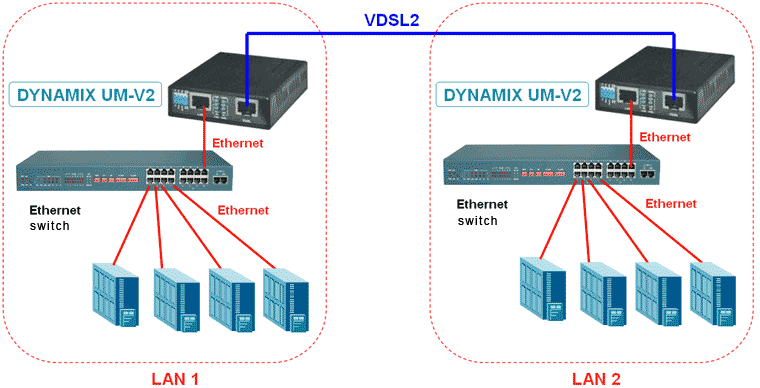

Cost effective bridge function to connect two Ethernet LAN

•

Support flow control on Fast Ethernet port via PAUSE frame or Back Pressure

•

IEEE 802.1Q VLAN tag transparent

•

Easy installation via simple plug-and-play

•

Selectable CPE and CO mode via DIP switch:
Two working modes are built in the same unit, which keep the flexibility of installation and easy provision of service but lower inventory of service provider.

•

Selectable fast and interleaved mode:
Fast mode guarantees a minimum end to end latency less than1 ms. Interleaved mode provides impulse noises protection for any impulse noise with a duration less than 250 µs, Interleaved mode has a maximum end to end latency of 10 m sec. Interleaved mode is the default mode.

•

Selectable target band plan:
Symmetric: Support the band plan G.997 and provide the symmetric transmission on both down stream and upstream.
Asymmetric: Provides highest line rate in short range in asymmetric mode.

•

Selectable target SNR margin:
User has the ability to select fixed SNR margin (9 dB) or fixed target data rate. When fixed SNR margin is selected, the systems will maintain the SNR margin at 9 dB across all usable loop length. When fixed target data rate is selected, the system will lock the data rate up to 50 Mbps/30 Mbps whenever the calculated SNR margin is higher than 9 dB. This gives best system stability and is the default mode.

•

Up to 8 Dynamix UM-V2 can be installed in specialized mini-size rack Dynamix UR-V8.

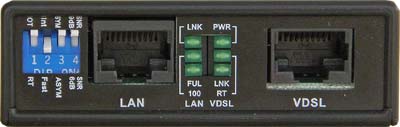

4-position DIP Switch
	Selectable CO or CPE mode
	Selectable fast or interleave mode ( Impulse noise protection)
	Selectable Band plan (Symmetric or Asymmetric)
	Selectable target SNR margin (6dB or 9dB)

LAN Interface
•	RJ-45 connector
•	Complying with IEEE 802.3/802.3u/802.3x
•	10/100 Base-T Auto-Negotiation, Auto-MDI/MDI-X .

VDSL and LAN Features
•	RJ-45 connector
•	DMT Encoding
•	Complying with ITU-T G993.1/993.2/G.997.1
•	On-board surge protection

LED
•	LAN: ACT/LNK, 10/100 Mbps, Half/Full Duplex
•	VDSL: Power On/Off, CO/CPE, Idle/Trained/Link

Power supply
•	DC single 12 Volt over 35mm DC jack; 4.2 Watt maximum

Physical & Environmental
	Temperature: 0~45 º C
	Humidity: 10%~90% non-condensing
	Dimensions: 73.4mm x 96.2mm x 22.8mm
	Safety: EN 60950, CE mark
