Dynamix UM-SN/Ethernet , SHDSL NTU Ethernet interface AC input with LCD display is the perfect choice for users and service providers and offers customers premises to high-speed TDM services with an RJ-45 interface. The industry standard RJ-45 interface can be configured as an Ethernet connection. The RJ-45 connection transfers data up to 2.304Mbps.
Dynamix UM-SN/Ethernet SHDSL NTU can be configured and managed via EOC, or menu-driven VT100 compatible Asynchronous Terminal Interface, either locally or remotely.
Dynamix UM-SN/Ethernet is equipped with an auto rate capability that identifies the maximum line rate supported by the copper loop. This powerful automatic configuration capability makes installation and service provisioning simple and painless. Further flexibility is provided in the ability to manually set the maximum NTU speed at different levels for different customer-tailored service offerings.
User's manual
Quick start
•
Standard G.shdsl (ITU G.991.2) supports for improved reach/speed and greater interoperability
•
Fast and cost-effective provisioning of traditional frame relay
(FR or T-HDLC) or TDM leased line services
•
User existing copper loop infrastructures
•

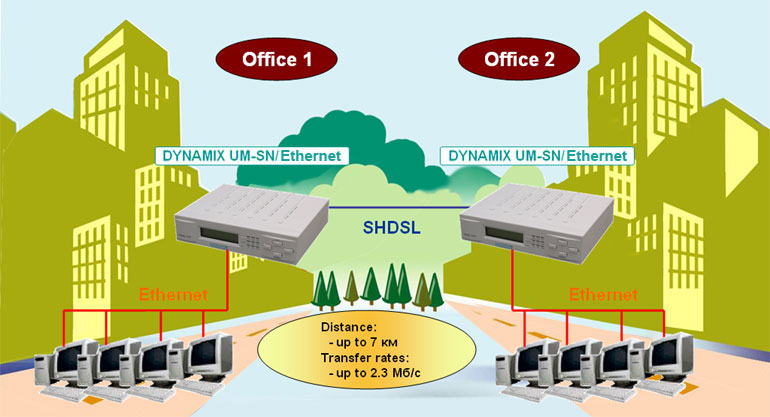

Can operate back to back connection
•
Efficient single wire pair usage
•
Up to 2.3Mbps symmetric service bit rate
•
Auto rate installation maximizes data rate based on loop conditions
