Dynamix RM-14/2AC
|
| Media converter Rack Mount |
|
|
|
|

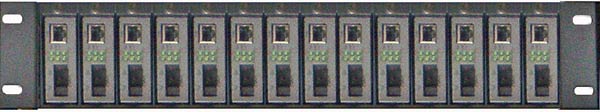

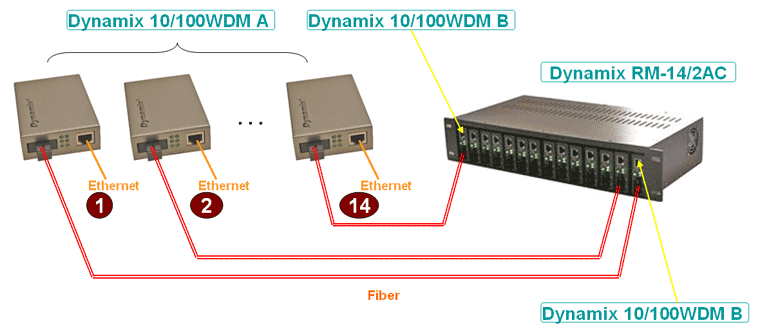

Dynamix RM-14/2AC Rack mount is the highly compositive central equipment for optical
fiber transceiver. One rack can centralized encase 14 number of 10/100M
multi-module or single-module fiber optic media converter {such as Dynamix -20km 10/100WDM(A/B), Dynamix -40km 10/100WDM(A/B), Dynamix -60km 10/100WDM(A/B) },
and centralized power
supply. The design reduces the wiring and simplifies the structure, also convenient for
management and maintenance.

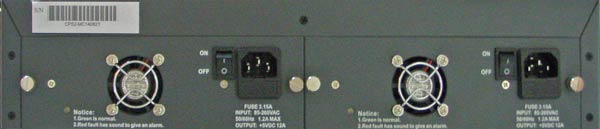

The Dynamix RM-14/2AC Rack mount is compatible with heat insert and dual power module. Two power module
should be power supply at the same time with adopt dual power
module, which can reduce the load of each power module. When one channel has
fault, the other one can supply the power independently to make the media
converter's working can't be interrupted.
To maintenance and replacement the power module,
you shouldn't pull out the fiber optic media converter, and shouldn't
take down the rack mount,only need to pull
out the blooey power module to repair or updating, make the maintenance
convenience and shortcut afford high dependability for network system.
High efficiency, easy operation, easy maintenance and
economic applied to optical
fiber hub resolve project.
|
|
|
|
|
| Technical Parameters |
| | Groove:14 |
| | Power input: AC
100-250V, 50-60HZ |
| | DC output: DC+5V |
| | Ripple ≤20mm |
| | Noise ≤50mm |
| | Power protection:
over-voltage protection, over-current protection |
| | Working temperature:
0-50 °C |
| | Storage temperature:
20 -65 °C |
| | Relative humidity
5%-95% (noncondensing) |
| | Outer dimensions
485*245*90 mm (L*W*H), 19 inches,2U high |
|
