DYNAMIX UR-7200
|
| SHDSL IP DSLAM |
|
|
|
|
|
|
DYNAMIX G.shdsl IP DSLAM Solution includes a DYNAMIX UR-7200
mini IP DSLAM with line cards in the central side and DYNAMIX
UM-S Series G.shdsl Routers at customer premises.
DYNAMIX UR-7200
Series IP DSLAM is a highly compact central unit designed for efficient scalability and easy deployment by
carriers and service providers. It provides symmetrical high-speed connectivity for access
network that is ideal for small-to-medium enterprises. Its energy-efficient compact enclosure fits perfectly inside
temperature hardened and space limited rack space as well as outdoor curbside cabinet.
|
User's manual
Quick start
|
Allowing 24/48/72 Shdsl
ports,
DYNAMIX UR-7200
Series IP DSLAM provides a scalable solution with minimum installation time and expense for service
providers. Line interface card is modular designed with hot swappable function and field replaceable feature.
Equipped with fan and air filter unit, low power requirements plus full diagnostic and alarm reporting capability,
DYNAMIX UR-7200
Series IP DSLAM ensures high reliability and performance. The management interfaces include comprehensive CLI, user-friendly Webbased
GUI and SNMP. Easy maintenance helps service providers to minimize daily operational costs.
DYNAMIX UR-7200Series IP DSLAM provides business-class multi-range from 192Kbps to 2.304 Mbps
symmetric line rates when connected to 2-Wire G.shdsl routers and 384Kbps to 4.608Mbps
symmetric line rates when connected to 4-Wire G.shdsl routers over existing copper wires.
|
|
|
|
| • |
Central solution in compact 2U 19" Chassis |
| • |
Scalable Solution. Provides 24/48/72 SHDSL ports
(Each 2 – Wire router connects to 1 port while each 4-Wire router connects to 2 ports) |
| • |
Flexible modular design with hot swappable and field
replaceable units |
| • |
Wide temperature range |
| • |
System overheating protection |
| • |
High reliability & easy maintenance |
 Back to Top
|
|
|
|
|
| Interface Cards |
| | Trunk Card Dynamix 7200-T
• 2 x 100/1000 Based-Tx or 2 x SFP (IP)
• 1 X Management Port
• 1 X Console Port |
| | Subscriber Interface 24 ports card
Dynamix 7200-24S
• SHDSL for IP DSLAM
• Each 2–Wire router connects to 1 port while each 4–Wire router connects to 2
ports |
| ATM |
| | QoS (UBR,
rt-VBR, nrt-VBR, CBR) |
| | PVC default priority and PVC-to-VLAN
mapping |
| | Traffic
scheduling/shaping/policing |
| Ethernet |
| | IEEE 802.1d Spanning tree protocol
(STP) |
| | IEEE 802.3ad Link aggregation |
| | Security on console access |
| OSI Layer 2 Functionality |
| | MAC filtering and count limit |
| | Access control list (ACL) |
| | Hardware-based multicasting |
| | Broadcast control and broadcast rate limit |
| | Port-based virtual local area network
(VLAN) |
| | IGMP snooping v1 and v2 |
| | SNMP v1 and v2c |
| | Remote Monitoring (1, 2, 3, 9
groups) |
| System Configuration |
| | Multiple-session TELNET |
| | Supports point-to-point VCC link |
| | Software remote upgrade |
| Dimensions |
| | 2U: 88mm x 482mm x 304mm
(H'W'D) |
| Environmental |
| | Operating Temperature: -40°C to 65°C |
| | Operating Humidity: 5% to 95% noncondensing |
| Performance Monitoring |
| | Monitors of line
attenuation, noise margin, current rate, loss of signal, loss of
framing, loss of power and error second performance data. |
| | Provides 15-minute and 1-day counters for
history record |
| Alarm and Status Surveillance |
| | Automatic alarm/LED indication for alarm
and system status |
| | Maintenance signal for OAM functionality |
| | Four housekeeping inputs and one alarm
contact closure outputs |
| Network Management |
| | Memory back-up |
| | Database export and import functionality |
| | RS-232 serial and Ethernet 10/100 port for
local management |
| | NMS/EMS for Multiple Nodes
Management based on SNMP (optional) |
| Management Information Base (MIB) |
| | RFC 1213 SNMP MIB II |
| | RFC 1493 Bridge MIB |
| | RFC 1643 Ethernet MIB |
| | RFC 2674 Q MIB |
| | RFC 1757 RMON MIB, group 1,2,3,9 |
| | SHDSL Line-MIB |
| Power Requirements |
| | Input: -48 V DC (-42 V to -56 V) |
| | Dual A+B -48 V DC power input terminal |
| Certification |
| | ITU-T K.20 |
| | ETSI 300-019, 300-386 |
| | EN 60950 |
| | Conform to CE requirements |
|
|
Back to Top
|
|
|
|
|
|
|
|

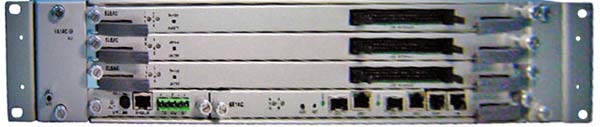

| Dynamix UR-7200 |
19" 2U Rack Mount Chassis up to 4 slots (for 3 Network Interface
cards and 1 trunk card) with DC power control card, cooling fan (FA1AC) and air filter. |
| Dynamix 7200-24S |
SHDSL 24 line Annex-A/B ATM base Line Card |
| Dynamix 7200-T |
Trunk Card 2 x 100/1000 Based-TX or 2 x SFP uplink card |
| Power supply |
AC to -48VDC Power supply unit |
| Console cable |
RJ45 to RS232 Console cable for 4000-GE1AC Trunk card |
| MDF cable IDC-50 |
Line card cable. 25 pairs IDC cable, 50 pin, 5M |
|
|
