DYNAMIX 2400A
|
| ADSL switch (24 ports) |
|
|
|
|
|
|
| • |

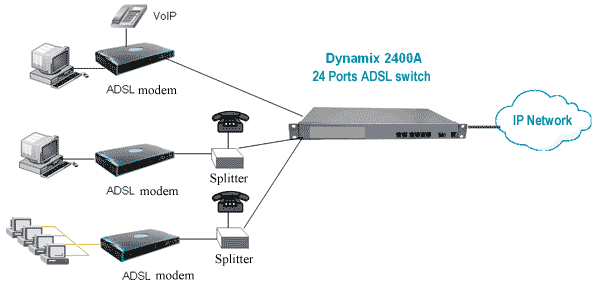

Supports 24 ADSL ports in DYNAMIX 2400A device, for providing broadband access |
| • |
ADSL ports support T1.413 Issue 2, ITU-T G.992.1 (G.dmt), G.992.2 (G.lite) and G.992.4 (G.hs) with maximum speed up to 8Mbps downstream and 1Mbps upstream |
| • |
POTS splitters for ADSL provide possibility of simultaneous voice and data transmission |
| • |
For convenience of creating scalable solutions DYNAMIX 2400A has 6 ports switch 10/100 Base-T. |
| • |
Two ports 10/100 Base-T can be used for cascading several concentrators DYNAMIX 2400A |
| • |
Supports Element Management System (EMS) |
| • |
Web management through local port or remote through Ethernet |
| • |
Supports alternating and continuous power supply (100-240V AC or -48V). |
 Back
to Top
|
|
|
|
|
| Hardware component
ADSL standards |
| | Supports ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt), G.992.2 (G.lite) and G.992.4 (G.hs) |
| | Supports G.dmt: speed 8Mbps downstream and 768Kbps upstream |
| | Supports G.lite: speed 1.5 Mbps downstream and 512Kbps upstream |
| ATM |
| | Supports ITU-T I.361 |
| | Supports UNI 3.1/4.0 |
| | Supports UBR, CBR, VBR-nrt, VBR-rt |
| | Supports RFC 2684/1483 bridge |
| | Supports PPPoE forwarding |
| | Supports OAM F4/F5 digital loopback |
| | Supports up to 4PVC connections per port |
| Network functions |
| | Six ports switch 10/100 Base-T (2 ports can be used for cascading) |
| | Supports 802.1d, 802.1q, 802.1p, 802.1x, 802.3ad |
| | Supports 802.3, 802.3u, 802.3x |
| | Supports up to 1024 VLAN |
| | Supports batch filters, based on MAC addresses and ports |
| | Supports IGMP Snooping |
| | Supports Layer 2 insulation between ADSL ports |
| | Supports port monitoring |
| Network management |
| | From console port (RS-232) |
| | Supports Telnet server for remote management |
| | Web-based configuration software support |
| | Element Management System |
| | Supports SNMP |
| | TFTP microprogram updating |
| Dimensions |
| | 19" standard, 1U |
| | 440mm (w) x 290mm (d) x 45mm (h) |
|
|
